Tong Sampah Otomatis Berbasis Arduino

Project Untuk Kelompok 5




Komponen yang dibutuhkan :
  • Arduino (Versi apapun) >> 1 Buah.
  • Sensor Jarak (Ultrasonic) >> 1 Buah.
  • Servo >> 1 Buah.
  • Buzzer >> 1 Buah.
  • Kabel >> Seperlunya.

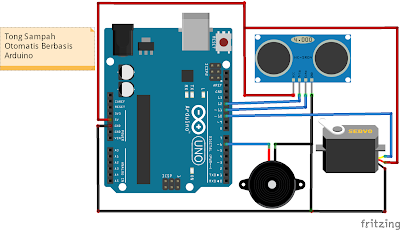

Wiring :

Source Code :

       /*
        * Generated Code by Kang Kamal
        * kangkamal.blogspot.com
        */
       #include <NewPing.h>
       #include <Servo.h>
       #define TRIGGER_PIN 12 // Arduino pin tied to trigger pin on the ultrasonic sensor.
       #define ECHO_PIN   11 // Arduino pin tied to echo pin on the ultrasonic sensor.
       #define MAX_DISTANCE 200 // Maximum distance we want to ping for (in centimeters). Maximum sensor distance is rated at 400-500cm.
       NewPing sonar(TRIGGER_PIN, ECHO_PIN, MAX_DISTANCE); // NewPing setup of pins and maximum distance.
       Servo myservo;
       int buzzer = 6;
       int jarak = 0;
       void setup() {
        // put your setup code here, to run once:
        Serial.begin(9600);
        pinMode(buzzer, OUTPUT);
        digitalWrite(buzzer, LOW); //Set default buzzer >> OFF
        myservo.attach(10); //Pin Servo
        myservo.write(0); //Derajat servo di set ke 0
       }
       void loop() {
        // put your main code here, to run repeatedly:
        delay(20); //Diberikan jeda untuk membaca data dari sensor ultrasonic
        jarak = sonar.ping_cm();
        Serial.print("Jarak : ");
        Serial.println(jarak);
        if(jarak < 20){
         digitalWrite(buzzer, HIGH); //Buzzer dinyalakan tanda ada objek mendekat
         myservo.write(90); //Derajat servo di set ke 90
         delay(2000);
         myservo.write(0); //Derajat servo di set ke 0
         digitalWrite(buzzer, LOW); //Buzzer dimatikan
        }
       }
